花崗巖主要成分是長石、石英和云母，質地堅硬耐磨，是生產砂石料的常見原材料，因?yàn)榛◢弾r性質好，因此花崗巖生產出的砂石料質量很好、品質也較高。
花崗巖堅硬不易破碎，破碎花崗巖我們一般推薦專碎硬礦石的圓錐破碎機，可以中細碎花崗巖，下面應客戶需求重點介紹花崗巖圓錐式細碎機。

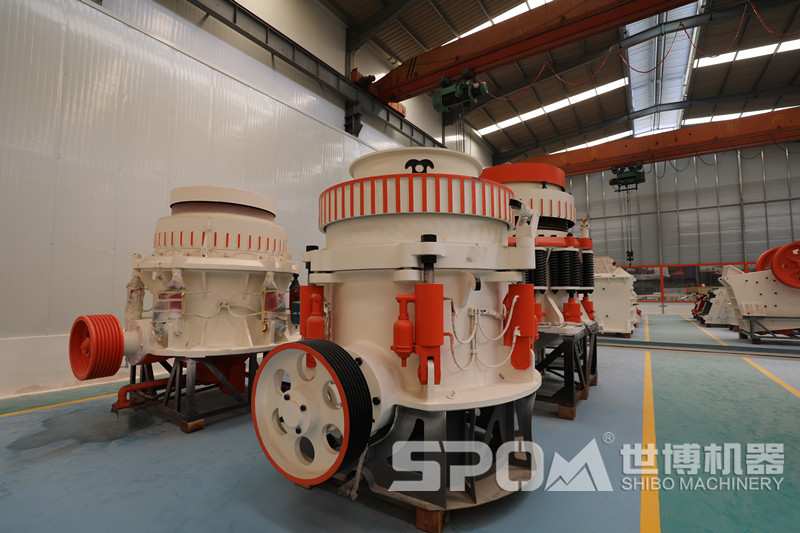

破碎花崗巖用的圓錐破碎機
圓錐式細碎機如何破碎花崗巖
花崗巖是比較硬的一種巖石，不易破碎，圓錐式細碎機是非常適合破碎硬礦石的破碎機。粗碎后的較小塊花崗巖進圓錐破進行細碎，圓錐細碎機是破碎壁和軋臼壁擠壓破碎礦石，擠壓力很強，可以將很硬的花崗巖細碎成小石子顆粒。
圓錐細碎機分類
圓錐式破碎機分為多缸液壓圓錐破碎機、單缸液壓圓錐破碎機、全液壓圓錐破碎機、復合式圓錐破碎機、移動圓錐破碎機等幾大類，多缸、單缸和移動式圓錐細碎機使用較多。
花崗巖多缸圓錐式細碎機有哪些型號
| 型號 | 腔型 | 給料口尺寸 | 緊邊給料口尺寸 | 最小排料口尺寸 | 電動機功率 | 產量(t/h) | 重量 |
| HP100 | C1(超粗) | 175 | 140 | 19 | 4P 100 | 45-140 | 8.4 |
| C2(粗) | 125 | 105 | 13 | ||||
| M(中) | 100 | 70 | 10 | ||||
| F1(細) | 71 | 50 | 9 | ||||
| F2(超細) | 33 | 20 | 6 | ||||
| HP200 | C2(粗) | 235 | 190 | 19 | 4P 160 | 90-250 | 10.4 |
| M(中) | 171 | 120 | 16 | ||||
| F1(細) | 150 | 95 | 13 | ||||
| F2(超細) | 116 | 70 | 8 | ||||
| HP300 | C1(超粗) | 265 | 230 | 25 | 4P 220 | 115-440 | 18.1 |
| C2(粗) | 240 | 210 | 20 | ||||
| M(中) | 190 | 150 | 15 | ||||
| F1(細) | 145 | 105 | 11 | ||||
| F2(超細) | 120 | 80 | 8 | ||||
| HP400 | C1(超粗) | 360 | 290 | 30 | 4P 315 | 140-630 | 25 |
| C2(粗) | 310 | 250 | 25 | ||||
| M(中) | 260 | 196 | 20 | ||||
| F1(細) | 182 | 110 | 13 | ||||
| F2(超細) | 135 | 90 | 10 | ||||
| HP500 | C1(超粗) | 370 | 330 | 38 | 4P 400 | 175-790 | 36 |
| C2(粗) | 320 | 290 | 28 | ||||
| M(中) | 245 | 210 | 22 | ||||
| F1(細) | 180 | 130 | 13 | ||||
| F2(超細) | 150 | 95 | 10 | ||||
| HP800 | C1(超粗) | 450 | 352 | 38 | 4P 830 | 260-1200 | 68.5 |
| C2(粗) | 373 | 298 | 32 | ||||
| M(中) | 340 | 275 | 25 | ||||
| F1(細) | 280 | 230 | 16 | ||||
| F2(超細) | 235 | 150 | 10 |
| 型號 | 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 45mm | 51mm |
| HP100 | 45-55 | 50-60 | 55-70 | 60-80 | 70-90 | 75-95 | 80-100 | 90-115 | 100-150 |
|
|
|
| HP200 |
|
65-85 | 90-125 | 110-150 | 135-180 | 150-195 | 160-210 | 170-225 | 190-235 | 210-250 |
|
|
| HP300 |
|
85-120 | 115-140 | 150-185 | 180-220 | 200-240 | 220-260 | 235-290 | 250-320 | 300-380 | 350-440 |
|
| HP400 |
|
|
135-180 | 190-230 | 225-275 | 250-320 | 270-350 | 295-380 | 290-375 | 355-490 | 410-565 | 460-625 |
| HP500 |
|
|
200-250 | 230-290 | 280-350 | 320-400 | 345-430 | 370-460 | 405-535 | 445-605 | 510-700 | 580-790 |
| HP800 |
|
|
265-340 | 320-425 | 385-510 | 425-540 | 470-605 | 495-740 | 545-800 | 600-945 | 690-1050 | 785-1200 |
HP系列是多缸液壓圓錐破碎機，有HP100、HP200、HP300、HP400、HP500、HP800幾種型號，每個型號都有粗中細破碎腔，細碎選F1、F2破碎腔。
花崗巖單缸圓錐式細碎機有哪些型號
| 型號 | 腔型 | 最大進料口尺寸 | 最小排料口尺寸 | 生產能力(t/h) | 最大裝機功率 |
| SH420 | S1(超粗) | 240 | 22 | 85-170 | 90 |
| S2(中粗) | 200 | 19 | 70-130 | ||
| SH420 | H1(細) | 135 | 10 | 45-130 | |
| H2(中細) | 65 | 8 | 35-80 | ||
| H3(超細) | 38 | 4 | 27-60 | ||
| SH430 | S1(超粗) | 360 | 25 | 120-345 | 160 |
| S2(中粗) | 300 | 22 | 105-305 | ||
| S3(粗) | 235 | 19 | 90-275 | ||
| SH430 | H1(細) | 185 | 13 | 60-210 | |
| H2(中細) | 90 | 10 | 65-165 | ||
| H2(超細) | 50 | 6 | 48-105 | ||
| SH440 | S1(超粗) | 450 | 35 | 255-605 | 250 |
| S2(中粗) | 400 | 29 | 215-515 | ||
| S3(粗) | 300 | 25 | 190-490 | ||
| SH440 | H1(細) | 215 | 16 | 110-395 | |
| H2(中細) | 110 | 13 | 115-340 | ||
| H2(超細) | 70 | 8 | 90-225 | ||
| SH660 | S1(超粗) | 560 | 41 | 355-1050 | 315 |
| S2(中粗) | 500 | 38 | 305-895 | ||
| SH660 | H1(細) | 275 | 16 | 170-665 | |
| H2(中細) | 135 | 16 | 190-505 | ||
| H2(超細) | 65 | 13 | 205-320 |
| 型號 | SH420 | SH430 | SH440 | SH660 | |||||||
| 腔型 | S1(超粗) | S2(中粗) | S1(超粗) | S2(中粗) | S3(粗) | S1(超粗) | S2(中粗) | S3(粗) | S1(超粗) | S2(中粗) | |
| 緊邊排料口尺寸 | 19 |
|
70 |
|
|
90 |
|
|
|
|
|
| 22 | 85 | 75-95 |
|
105 | 95-125 |
|
|
|
|
|
|
| 25 | 90-115 | 80-130 | 120 | 115-145 | 105-170 |
|
|
190 |
|
|
|
| 29 | 100-160 | 90-115 | 135-175 | 125-200 | 115-220 |
|
215 | 205-270 |
|
|
|
| 32 | 105-170 | 95 | 140-230 | 130-255 | 120-235 |
|
230-300 | 220-345 |
|
|
|
| 35 | 110-145 |
|
150-295 | 140-270 | 125-250 | 255 | 245-385 | 230-435 |
|
|
|
| 38 | 115 |
|
160-310 | 145-285 | 135-265 | 270-355 | 260-485 | 245-465 |
|
305 | |
| 41 |
|
|
170-330 | 155-305 | 140-275 | 285-450 | 270-515 | 260-490 | 335 | 320-420 | |
| 44 |
|
|
175-345 | 165-265 | 150-245 | 300-565 | 285-450 | 270-430 | 350-460 | 340-620 | |
| 48 |
|
|
190-310 | 175 | 160 | 320-605 | 305-400 | 290-380 | 375-590 | 360-755 | |
| 51 |
|
|
195-260 |
|
|
335-525 | 300 | 305 | 390-720 | 375-790 | |
| 54 |
|
|
205 |
|
|
350-460 |
|
|
410-860 | 395-825 | |
| 60 |
|
|
|
|
|
|
|
|
445-930 | 425-895 | |
| 64 |
|
|
|
|
|
|
|
|
465-980 | 450-825 | |
| 70 |
|
|
|
|
|
|
|
|
500-1050 | 480-635 | |
| 76 |
|
|
|
|
|
|
|
|
535-985 |
|
|
| 型號 | SH420 | SH430 | SH440 | SH660 | SH870 | SH890 | |||||||||||||
| 腔型 | H1(細) | H2(中細) | H2(超細) | H1(細) | H2(中細) | H2(超細) | H1(細) | H2(中細) | H2(超細) | H1(細) | H2(中細) | H2(超細) | H1(細) | H2(中細) | H2(超細) | H1(細) | H2(中細) | H2(超細) | |
| 緊邊排料口尺寸 | 4 |
|
|
27-35 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
|
30-50 |
|
|
48-80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8 |
|
35-45 | 31-55 |
|
|
50-85 |
|
|
90-135 |
|
|
|
|
|
|
|
|
|
|
| 10 | 45 | 38-75 | 32-80 |
|
65-85 | 53-90 |
|
|
95-180 |
|
|
|
|
|
|
|
|
364-420 | |
| 13 | 50-85 | 40-80 | 35-50 | 68-110 | 70-135 | 56-100 |
|
115-190 | 100-195 |
|
|
205-295 |
|
|
280-405 |
|
|
395-532 | |
| 16 | 52-95 | 45-75 | 38 | 75-150 | 75-145 | 60-104 | 110-200 | 120-280 | 110-120 | 170 | 190-295 | 220-320 |
|
|
304-517 |
|
|
426-574 | |
| 19 | 58-100 | 50-60 |
|
80-165 | 80-155 | 65-105 | 120-280 | 100-300 | 115-225 | 185-340 | 205-440 | 235-300 |
|
400-563 | 328-558 |
|
|
458-616 | |
| 22 | 60-105 |
|
|
85-175 | 85-165 | 70-95 | 125-295 | 140-320 | 125-240 | 195-440 | 215-470 | 250--290 | 448-588 | 428-786 | 352-598 |
|
552-613 | 489-658 | |
| 25 | 63-115 |
|
|
90-185 | 90-155 | 75 | 135-315 | 150-340 | 135-255 | 210-465 | 230-500 |
|
477-849 | 455-836 | 376-639 | 480-640 | 587-1043 | 520-700 | |
| 32 | 75-130 |
|
|
100-210 | 100 |
|
155-360 | 170-285 | 150-210 | 235-550 | 265-505 |
|
544-968 | 519-953 | 400-680 | 547-1277 | 669-1189 | 593-798 | |
| 38 |
|
|
|
110-210 |
|
|
170-390 | 185 |
|
260-605 | 290-405 |
|
601-1070 | 573-1054 | 455-775 | 605-1411 | 739-1314 | 655-882 | |
| 44 |
|
|
|
|
|
|
185-385 |
|
|
285-665 |
|
|
658-1172 | 628-1154 | 503-728 | 662-1546 | 810-1440 | 718-883 | |
| 51 |
|
|
|
|
|
|
|
|
|
315-515 |
|
|
725-1291 | 692-1271 | 551-669 | 730-1702 | 892-1586 | 790 | |
| 57 |
|
|
|
|
|
|
|
|
|
|
|
|
782-1393 | 746-1372 |
|
787-1837 | 962-1604 |
|
|
| 64 |
|
|
|
|
|
|
|
|
|
|
|
|
849-1512 | 810-1248 |
|
854-1994 | 1045-1393 |
|
|
| 70 |
|
|
|
|
|
|
|
|
|
|
|
|
906-1331 | 865-1098 |
|
912-2128 | 1115 |
|
|
單缸液壓圓錐破碎機破碎腔型分為超粗、中粗、粗、細、中細、超細六種破碎腔型，細碎選H1、H2兩種細碎腔型，出料細度能達到4mm左右。
花崗巖移動式圓錐細碎機有哪些型號
| 標準機型 | 配套設備 | 配套設備 | 外型尺寸 | ||
| 型號 | 進料粒度 | 處理能力(t/h) | |||
| S-CS75 | 3YZK1848 | CS75 | ≤60 | 59-163 | 12600×2800×4400 |
| S-CS110 | 3YZK1860 | CS110 | ≤78 | 100-200 | 13800×3000×4400 |
| S-CS160 | 3YZK2160 | CS160 | ≤88 | 132-253 | 13800×3000×4400 |
| S-CS220 | 3YZK2160 | CS220 | ≤230 | 215-330 | 14500×3000×4500 |
| S-Q300 | 3YZK1848 | SQ300 | ≤60 | 105-205 | 12600×2800×4400 |
| S-Q400 | 3YZK1860 | SQ400 | ≤230 | 235-575 | 13800×3000×4400 |
| S-Q500 | 3YZK2160 | SQ500 | ≤240 | 304-640 | 14500x3000x4600 |
| S-H420 | 3YZK1848 | SH420 | ≤240 | 85-170 | 12600×2900×4400 |
| S-H430 | 3YZK1860 | SH430 | ≤360 | 120-345 | 13800×3000×4500 |
| S-H440 | 3YZK2160 | SH450 | ≤450 | 255-605 | 14800×3200×4600 |
| S-HP100 | 3YZK1860 | SHP100 | ≤40 | 75-140 | 13800×2900×4300 |
| S-HP200 | 3YZK2160 | SHP200 | ≤85 | 145-250 | 14200×3000×4500 |
| S-HP300 | 3YZK2160 | SHP300 | ≤230 | 220-440 | 16500×3200×4600 |
| S-PF1214 | 3YZK1860 | PF1214 | ≤300 | 100-200 | 14500×2900×4500 |
| S-PF1315 | 3YZK2160 | PF1315 | ≤350 | 130-280 | 15200×3000×4500 |
| S-PF1320 | 3YZK2460 | PF1320 | ≤500 | 180-400 | 15200×3000×4500 |
| S-S1860 | 3YZK1860 | ≤400 | 65-586 | 10500×2700×4200 | |
| S-S2160 | 3YZK2160 | ≤400 | 81-720 | 10500×3000×4500 | |
| S-S2460 | 3YZK2460 | ≤400 | 100-810 | 10500×3200×4500 | |
移動車配置圓錐破碎機的移動圓錐破碎機是當前砂石加工市場應用較多的一款機型，上面是其具體型號及其配置的圓錐機型號，細碎備注細碎破碎腔。
花崗巖圓錐式細碎機是一款高效、智能的碎石機器，型號可選性也很多，如需選購，歡迎聯系我們，河南世博機器廠家。
